Stabilizing & Lifting

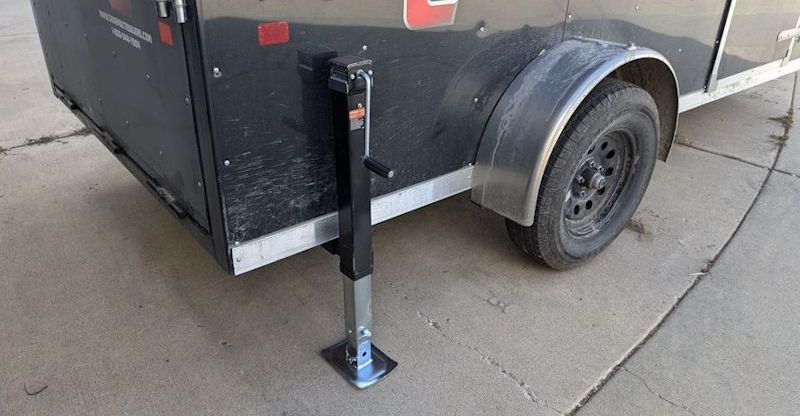

Jacks

The right setup setup can be used to stabilize, level, and change a flat.
We prefer to make them removable so no worries about dragging them when off-road.

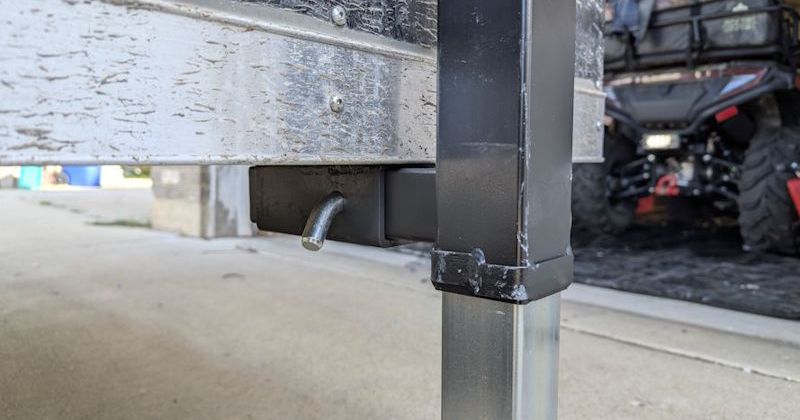

The mounts are welded to the trailer frame using a 2-1/2" to 2" reducer for hitches. Weld the piece to the frame and crossmember to give a little more stability.
We can cut the handle off and weld a nut so you could use a cordless to raise and lower, or leave the handle so you do not have to bring a cordless with you all the time.
Click on pictures to see full size image

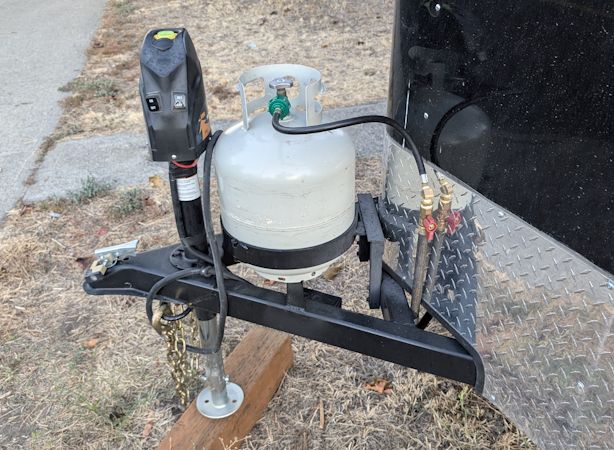

Tongue Jacks

12Volt electric tongue jacks are preferred over hand cranks to make life easier.
We often turn the sideways, especially on a trailer with a short tongue since this may be the easiest way to fit your propane tank on the tongue.
As a benefit it is easier to see the buttons since you typically stand on the side when operating the jack.

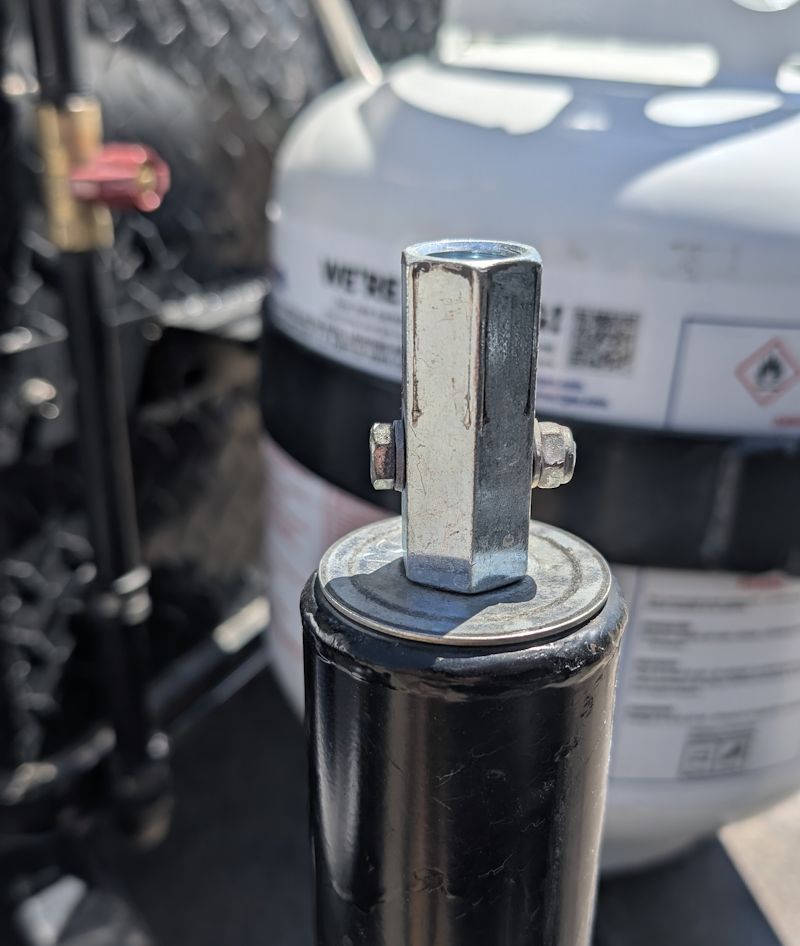

Another option for a manual tongue jack is to bolt a rod coupling nut to the shaft. We recommend a drill and not an impact driver for this as the impact driver will hammer destroy the small bolt over several uses.
Typically on a top crank jack the handle is bolted on, just replace with a coupling nut the fits the shaft, most often a 1/2", or 5/8" nut.

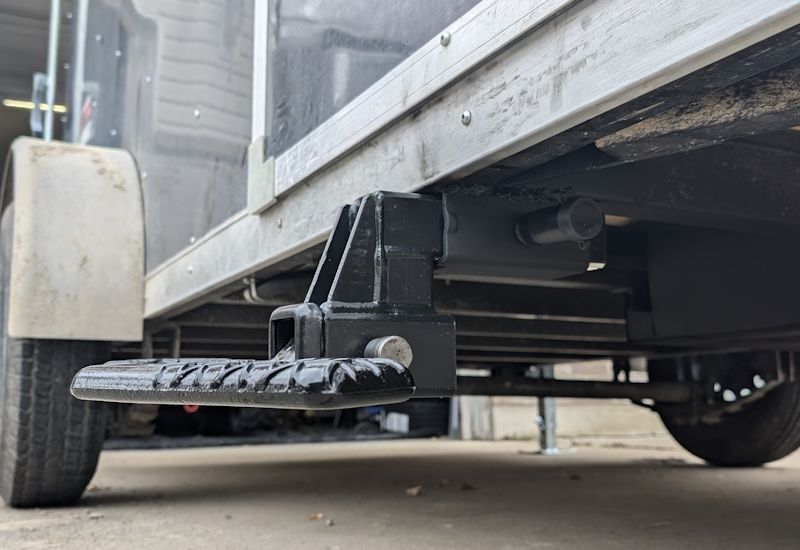

Steps

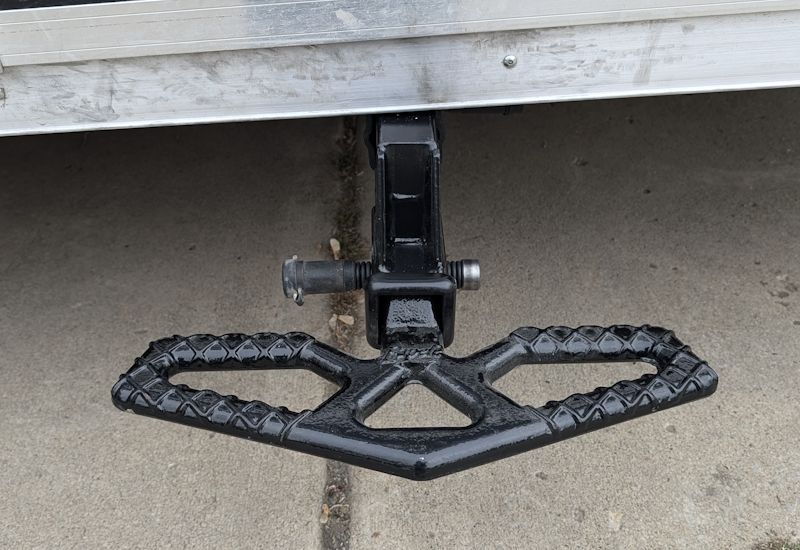

Like the jacks we installed on the trailer we use a 2-1/2" - 2" reducer sleeve to the frame under the door to mount it.
Turned out perfect, used a 4" drop hitch and it is just right.
Easy to remove for traveling so no worries about dragging it off-road.
